Xotic XW-1 Wah Pedal - Authorised Dealer

Self-lubricating nylon bushing pivot for quiet and smooth operation with fully-adjustable rocker pedal tension.

Gold contact relay true bypassing, which allows for transparent true bypass tone, while incorporating ultra reliable switching with minimum one million life cycle.

20% smaller footprint than conventional wah pedals.

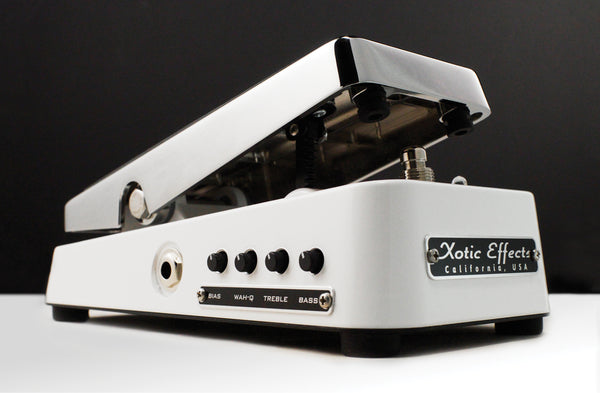

Fully adjustable Wah-Q and Bias controls and a two-band EQ with +/-15 dB center-detent potentiometers optimize the voicing for different playing styles and gear.

Fuzz friendly buffering circuit assures a great sounding wah tone with your favorite fuzz pedals

Specifications

• Dimensions (W/D/H): D 8.27” (210mm) W 3.94” (100mm) H 2.64 (67mm)
• Weight: 2.16lb. (980g)
• Power Consumption: 9VDC/5mA
• Battery Type: 9VDC (006P) x 1
• Input Impedance: 1M ohm
• Output Impedance: 10K ohm
• Nominal Intput Level: -20 dBV
• Nominal Output Level: -20 dBV
• Bypass: True Bypass

.
